23XX Adapter

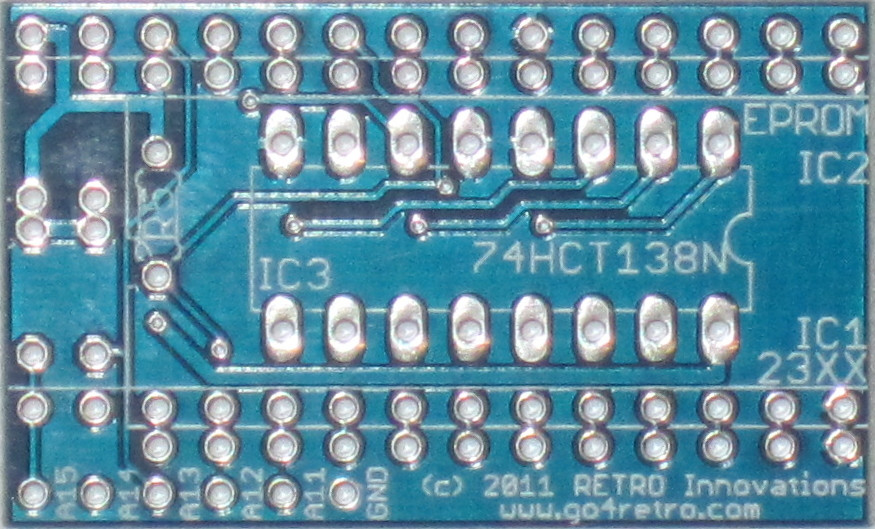

  • PCB Top View
  • PCB Bottom View
  • Schematic
  • Assembled PCB Top View
  • Assembled PCB Bottom View
1.00 Ounces
Calculated at checkout

Product Description

Perfect for the do-it-yourself vintage system enthusiast, the 23XX Adapter converts JEDEC standard 28 pin EPROM, EEPROM, or FLASH ROMs to a 2316,2332, or 2364 socket. Since 23XX ROMs could be produced with active-high or active-low select lines, The 23XX adapter can be configured for either signal level on any applicable select line. The optional 5 highest address lines are available via pads complete with provision for pullup resistors (4.7K).

Technical Details

The onboard 74hct138 3-to-8 decoder converts any combination of the 3 possible chip select lines into a single JEDEC standard select line.  If a 23XX select line is not needed, that input can be tied to ground via SMT pads on the bottom of the PCB.

Construction details and configuration settings are available on the product information page.

Note:If you are outside of the United States and your order consists solely of unpopulated PCBs, please contact us for cheaper shipping options.

Write your own product review

Product Reviews

  1. The perfect solution 5 Star Review

    Posted by on 31st Jan 2016

    I needed to replace an 2332 4k ROM in my retro hardware. After some attempts to build by own adapter, I order this one from Retroinnovations. With just 4 small dots of soldering I configured it as 2332, plugged in the EPROM, plugged the adapter into the board - and it worked. Guys, this is absolutely brilliant. High class board that works out of the box. I'm happy I bought 3 additional ones for future use :-)
