ROM-el 23128/23256 FLASH ROM Replacement

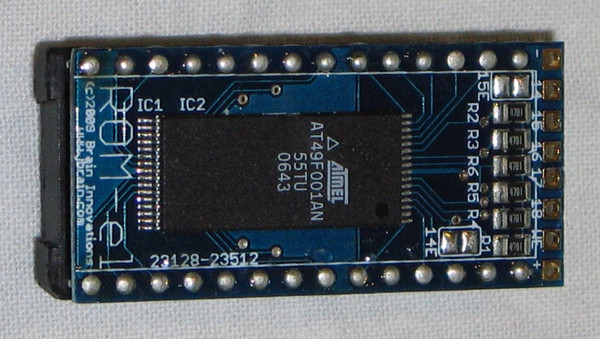

  • 23128 ROM-el top view
  • 23128 ROM-el side view
  • 23128 ROM-el schematic
  • 23128 ROM-el CAD drawing
Price:
$10.00
SKU:
ROM-EL-23128
Weight:
1.00 Ounces
Shipping:
Calculated at checkout


Product Description

ROM-el brings contemporary FLASH ROM storage to vintage applications.

Bridging the gap between newer and mature ROM options/packaging, the 23128 ROM-el offers 1Mbit (128kB) of Atmel FLASH ROM storage (AT49F001AN) in an easy to utilize MOS 23128/27128 DIP footprint.  The unit can be configured for either 23128/27128, 23256/27256, or 27512 applications via surface mount jumpers on the unit.  In addition, overflow addressing lines are available on the ROM-el to enable bank switching and other targeted ROM applications.

The 23128 ROM-el forms the basis for the MOS 23128/23256-based JiffyDOS replacement ROM overlays.

Note: ROM-el units cannot be programmed while in circuit.  An adapter must be created to adapt the ROM-el pinout to that of a standard AT49F001 32pin IC and programmed in a standard EPROM/FLASH programmer.
